Implementing Building Information Modeling in Masonry

Implementing Building Information Modeling in Masonry

All you need to know about implementing Building Information Modeling in masonry

By Adrian Siverson

Building Information Modeling (BIM) is a topic on the tips of many tongues in the construction industry. But did you know that BIM can be implemented in masonry, offering value to the mason contractor? Here is all you need to know about implementing Building Information Modeling in masonry.

University of Washington Maple and Terry Hall in Seattle
University of Washington Maple and Terry Hall in Seattle

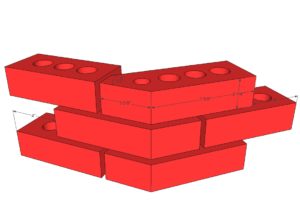

Image 1 Shown is a BIM brick layout.

Image 1
Shown is a BIM brick layout.

A little history of our involvement: In the beginning, we offered 3D shapes of specialty brick to send to our supplier, for confirmation that they could be made. This was our initial BIM involvement on projects. We would also make a small 3D model of the shapes to assure they worked with the layout and bond we were trying to accomplish. This reduced cuts, fabrication and install time, making it beneficial to the supplier and the mason. (See Image 1.)

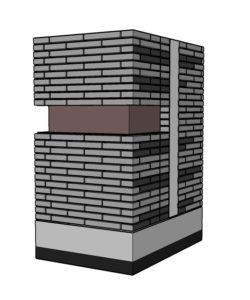

Image 2 BIM model of the Seattle Lemiux Library at Seattle Pacific University

Image 2
BIM model of the Seattle Lemiux Library at Seattle Pacific University

From there, we became involved with making a BIM brick mockup similar to a mockup panel (see Image 2). It showed the brick layout, coursing, flashing, relieving angles, and back-up wall. The model identified the areas that did not work and areas needing more detail. When the building was built, there were no issues with the modeled components. That was the payoff.

By modeling the mockup, we were able to greatly reduce problems with the different materials interfacing with the brick veneer. Those materials were supplied and installed by other subcontractors. Our crew was able to continue laying brick without the associated starts and stops typical to other subcontractors interfacing with our work. So, their productivity increased.

Our first large BIM project was modeled solely as a contract requirement (see Image 3).

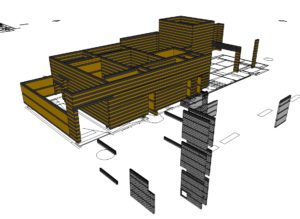

Image 3 A BIM model of the Subway Transit Station at Capitol Hill in Seattle

Image 3
A BIM model of the Subway Transit Station at Capitol Hill in Seattle

We modeled what the general contractor/construction manager (GC/CM) needed. The model was essentially used for clash detection between mechanical, electrical, fire and structural elements (our model was structural CMU). The model looked good, but it did not provide the information to really help our crew in the field. We did get some benefits from the model: RFIs were identified early, and clashes that usually occur and stop the masonry crew were identified and corrected before we started on the project.

Lessons learned

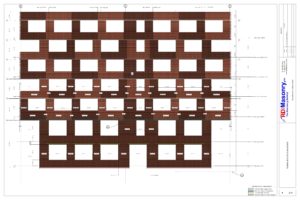

Image 4 BIM model of the University of Washington Maple and Terry Hall in Seattle

Image 4
BIM model of the University of Washington Maple and Terry Hall in Seattle

We have learned that the most beneficial way for implementing Building Information Modeling in masonry is to model what we want to see in the level of detail we need. By doing this, we can produce drawings that make our crews more productive and lessen the time our foremen spend searching for information in the architectural plans. By modeling, we know immediately if something doesn’t work, and we can find a solution ahead of the project start. Our models are represented in a set of masonry shop or lift drawings that we provide to our crews (see Image 4).

Today’s BIM models

We currently make BIM models for several applications:

  1. When it is required by a contract
  2. When masonry shop or lift drawings are required
  3. When tough details in the masonry need to be represented
  4. When it benefits us on the project.

Anything that we used to do in 2D, such as shop drawings, is now done in 3D and converted to 2D and isometric plans. When modeling a structural CMU wall, we will show the rebar dowel layout, which saves us time. We don’t have to lay it out in the field for the other trades, and we get it in the right spot from the start.

I try to model multiple elements, like brick that interfaces with angle irons or precast. I include them in the same 3D model, ensuring proper fit and layout. Modeling these elements helps confirm the layout works both horizontally and vertically, and that the parts interface correctly. We include these elements in the masonry model when we are supplying them and use the plans from the model for the shop drawings. When precast and angle irons are modeled with the brick or CMU, we know it fits and the attachments work. This equals better production.

During the modeling process, if we find a door, window, ledger angle, or some other building element that does not work to the layout or design that we or the architect typically like to see, we will create an RFI to move or change them. Identifying layout issues early in the design greatly reduces lost time during actual construction. This is especially true when the design team is willing to work with the mason and incorporate the BIM masonry model. The key here is to leverage the model to get the most out of its data and your efforts.

Image 5 BIM model of Washington State University NPSE in Everett, Wash.

Image 5
BIM model of Washington State University NPSE in Everett, Wash.

When landing a project, one of the first things I do is request a set of PDF plans. If it is a project of which I am going to create a BIM masonry model, I also request the CAD backgrounds of the floor plans. Instead of having to draw and layout all the masonry walls, I can import the CAD drawings into the BIM model and create the walls from the layout already provided by the architect. I try to reuse the wheel, not reinvent it (see Image 5).

When implementing Building Information Modeling in masonry, I find it important to understand the materials and installation process, and how they interface with each other. Having worked in the field myself, both as a bricklayer and a foreman, I have a good understanding of our trade. I try to transfer that masonry-specific knowledge to the BIM model. This includes material sizes, shapes, layout, 3D scheduling, material procurement, and shop drawing design.

I ensure that the model is used to reduce crew stoppages, material overages, and costs. All the while, I maximize production, simplify layout dimensions, and use the RFI process. I provide detailed drawings to our crews, foreman, GC and design team, so the BIM model is leveraged to its fullest potential.

Acquired knowledge

We have communication about BIM on more than half of our projects. The GCs and architects have been receptive and positive about our ability as a company to be a part of the BIM process. BIM be implemented in masonry, and as a company, we have several projects involving some level of BIM at any given time. We have learned to utilize our models to their fullest potential and have had success implementing BIM into our daily operations. Our crews know what BIM is, and they are familiar with the type of information the model can provide them. They are not fearing the future, but are welcoming it.

Mason contractors really measure success on production. We have shown that, when we used BIM, we’ve had fewer problems on the project. Whether those problems were ours or another trade’s, by eliminating them, we were more productive.

Simplifying the layout and dimensions on our shop and layout drawings increases production and lessens returns to correct deficient work. The model can provide exact quantities, greatly reducing waste. In the end, the GC and design team are happy with the involvement of our company and always include us in conversations of upcoming projects.

Masonry, as an industry, is falling behind in the information we are providing to design teams. Technology, as it pertains to construction, is advancing at a rapid rate. Early adopters tend to have an edge in what services they provide to a project. What can we do, as an industry, to be early adopters, implement technology, and be a front runner as a system of choice when designing buildings? For us, that step has been adopting BIM as a part of our operation. Masonry is timeless. BIM for masonry’s time has come.

Adrian Siverson is project manager and BIM coordinator for R&D Masonry Inc.,
